Advanced topics

This section covers some advanced topics, which may be only relevant for a smaller group of people. Functionality may be extended but also removed in future

Graphics pipeline

There are basically two loops during simulation, which feed the graphics pipeline. The solver runs a loop:

• compute step (or set up initial values)

• finish computation step; results are in current state

• copy current state to visualization state (thread safe)

• signal graphics pipeline that new visualization data is available

• the renderer may update the visualization depending on graphicsUpdateInterval in visualizationSettings.general

The openGL graphics thread (=separate thread) runs the following loop:

• render openGL scene with a given graphicsData structure (containing lines, faces, text, …)

• go idle for some milliseconds

• check if openGL rendering needs an update (e.g. due to user interaction)

• \(\ra\) if update is needed, the visualization of all items is updated – stored in a graphicsData structure)

• check if new visualization data is available and the time since last update is larger than a presribed value, the graphicsData structure is updated with the new visualization state

Raytracing

For offscreen rendering (e.g. on a supercomputer without and video adapter), for offscreen AI-research on multiple cores, and in order to compensate the limited functionality (but high compatibility) of OpenGL 1.3, an option for CPU-based software rendering (raytracing) has been added. This allows to include shadows and transparency correctly, with additional support for reflections, refraction, emission, fog and materials. In the future, textures may be added as well.

Fig. 7 Example image of raytraced renderer view.

The basic things to know are:

• Raytracing settings are collected in SC.visualizationSettings.raytracer (in the following, we omit ‘SC.visualizationSettings’).

• Raytracing is activated by setting raytracer.enable=True. Please make sure that you start with small render window sizes / complexity first.

• The render window size is adjusted by window.renderWindowSize. Be careful with this settings.

• Adjust the raytracer.numberOfThreads for optimal performance, use raytracer.verbose to see render times for different settings. For testing, use raytracer.imageSizeFactor>1 to decrease the raytracer’s resolution (with same image size), while openGL.multiSampling will increase the resolution (anti-aliasing). Note that switching from openGL.multiSampling=1 and raytracer.imageSizeFactor=4 to openGL.multiSampling=3 and raytracer.imageSizeFactor=1 increases computational costs by a factor \(4\times 4\times 3\times 3 = 144\). Use only one light, if sufficient (set openGL.light1.enable=False).

• Scene, lights, shadow, clipping plane, etc. settings are taken form OpenGL settings and directly used in the software renderer, like openGL.light0.position, the shadow of each light, openGL.perspective, openGL.clippingPlaneNormal, openGL.showLines, etc.;

• some settings are in general, like general.backgroundColor or general.drawWorldBasis;

• In order to see the advantages of the software renderer, materials have to be used, see below.

Materials:

• Materials have the type VSettingsMaterial, see description in VSettingsMaterial, for adjusting color, reflectivity, shininess, alpha-transparency, etc.;

• Materials can only be used within triangulated geometries (GraphicsData TriangleList) using a material-flag in the color, like graphics.Sphere(..., color=graphics.material.chrome). In the RGBA color, the alpha-channel is replaced by a material index which starts at 1000 (where 1000 represents material index 0). Note that in the regular OpenGL-rendering, alpha\(>\)1 is equivalent to alpha\(=\)1. The first 10 materials are linked to raytracer.material0 ... raytracer.material9.

• The material’s baseColor is used if the color red-channel is set to \(-1\). Note that this allows to globally change the color of objects by changing baseColor in the material settings in visualizationSettings. Summarizing, using color=[1,0,0,graphics.material.indexSteel] chooses red color with steel material settings, while color=[-1,-1,-1,graphics.material.indexSteel] will use the color of steel (but will be black for OpenGL renderer), identical with color=graphics.material.steel.

• The setting backgroundColorReflections can be used to represent the background which is used for rendering, while the background is independently set to black or white. Otherwise, black background leads to black regions on highly reflective objects or very light regions for white backgrounds.

• System text messages (solver, version, etc.) are overlayed over raytracing and can be turned off using the settings in general.showComputationInfo and similar. However, note that item texts are currently not shown in raytracer, affecting node numbers, etc.!

Limitations and risks:

• Raytracing is CPU-based and therefore slow. Do not use very high resolution (4K) together with multisampling \(>1\). Start with small render window sizes (e.g. 600 \(\times\) 400)

• Raytracing usually uses multithreading with speedups \(>10\) on 16 cores. However, this cannot be combined with multithreaded simulations. It is therefore recommended to use raytracing in the solution viewer, not during simulation.

• If software rendering of a single frame gets to long (>4 seconds), timeouts become active and it may occasionally not work. There are some options to compensate, see above.

• In general, it is recommended to start with default settings and experiment with changes using the visualization settings dialog.

To add raytracing to your project, give the triangles a material, e.g. color=graphics.color.dodgerblue[0:3]+[graphics.material.indexChrome], and set view0.camera.useRaytracer = True before mbs.SolutionViewer(); the example at the end of GraphicsData does so and shows the image.

GraphicsData

All graphics objects are defined by a GraphicsData structure. Note that currently the visualization is based on a very simple and ancient OpenGL implementation, as there is currently no simple platform independent alternative. However, most of the heavy load triangle-based operations are implemented in C++ and are realized by very efficient OpenGL commands. However, note that the number of triangles to represent the object should be kept in a feasible range (\(<1000000\)) in order to obtain a fast response of the renderer.

Many objects include a GraphicsData dictionary structure for definition of attached visualization of the object. Note that objects expect a list of GraphicsData, which can be produced with exudyn.graphics. ... functions (until Exudyn 1.8.33 with GraphicsData...(...), which are now deprecated). Note that if reading out the GraphicsData from the object again, it usually has a different structure sorted by types of GraphicsData. Typically, you can use primitives (cube, sphere, …) or STL data to define the objects appearance. GraphicsData dictionaries can be created with functions provided in the utility module exudyn.graphics, see Module: graphics.

GraphicsData can be transformed into points and triangles (mesh) and can be used for contact computation, as well. NOTE that for correct rendering and correct contact computations, all triangle nodes must follow a strict local order and triangle normals – if defined – must point outwards, see Fig. 8.

Fig. 8 Definition of triangle normals and outside/inside regions in Exudyn

The normal to a triangle with vertex positions \(\pv_0\), \(\pv_1\), \(\pv_2\) is computed from cross product as \(\nv = \frac{(\pv_1-\pv_0) \times (\pv_2-\pv_0)}{|(\pv_1-\pv_0) \times (\pv_2-\pv_0)|}\); the normal \(\nv\) then points to the outside region of the mesh or body; the direction of \(\nv\) just depends on the ordering of the vertex points (interchange of two points changes the normal direction); correct normals are needed for contact computations as well as for correct shading effects in visualization.

BodyGraphicsData

BodyGraphicsData contains a list of GraphicsData items, i.e. bodyGraphicsData = [graphicsItem1, graphicsItem2, ...]. Every single graphicsItem may be defined as one of the following structures using a specific ‘type’. The following sections show the different possible types of GraphicsData. Points, normals, colors, triangles and edges are given as rows - one row per point, color, triangle or edge, as a list of lists or a 2D numpy array - and the functions of exudyn.graphics return them so; a flat list of the same numbers is read as well. A script that indexes such a list as flat reshapes it first, e.g. np.array(g['points']).reshape(-1,3), which works for both forms.

GraphicsData: Line

GraphicsData 'type' = 'Line' draws a polygonal line between all specified points:

Name	type	default value	description
color	list	[0,0,0,1]	list of 4 floats to define RGB-color and transparency
data	array	mandatory	the points of the polygonal line as rows of x,y,z coordinates

GraphicsData: Lines

GraphicsData 'type': 'Lines' draws a list of \(n\) lines, straight with 2 points each or quadratic (curved) with 3 points each:

Name	type	default value	description
points	array	mandatory	the line points as rows of x,y,z coordinates, \(2n \times 3\) for straight lines and \(3n \times 3\) for quadratic ones (a flat list of the same numbers is read as well); a quadratic line is given by its end points and then its mid point
colors	array	mandatory	the RGBA colors of the line points as rows, \(2n \times 4\) or \(3n \times 4\) (or flat)
shape	string	‘linear’	‘linear’ for straight lines, ‘quadratic’ for curved ones, each a quadratic curve through its three points; they are kept as they are and split into straight lines when drawn, with the settings of that moment: as many segments as the angle between the curve’s end tangents needs against visualizationSettings.openGL.advanced.curvedTriangleTilingAngle, at most curvedTriangleMaxTiling; graphics.Lines(..., shape='quadratic') builds such a polyline from the points along the curve

GraphicsData: Circle

GraphicsData 'type' = 'Circle' draws a polygonal line between all specified points:

Name	type	default value	description
color	list	[0,0,0,1]	list of 4 floats to define RGB-color and transparency
radius	float	mandatory	radius of circle
position	list	mandatory	list of float triples of x,y,z coordinates of center point of the circle

GraphicsData: Text

GraphicsData 'type' = 'Text' places the given text (mono-space font) at position:

Name	type	default value	description
color	list	[0,0,0,1]	list of 4 floats to define RGB-color and transparency
text	string	mandatory	text to be displayed, using UTF-8 encoding (see Character encoding: UTF-8); multiline texts can be written with line breaks
position	list	mandatory	list of float triples of [x,y,z] coordinates of the left upper position of the text; e.g. position=[20,10,0]
fontSize	float	0	scalar fontSize or 0 for default; default font size in Exudyn is 12 (visualizationSettings.view0.window.globalFontSize); display scaling increases font size
offset	list	[0,0]	offset in X/Y screen plane provided as list of 2 float values; this offset is not rotated with the model view and given relative to font size (offset [1,1] equals offset of one character to the right and up)

GraphicsData: Spheres

GraphicsData 'type' = 'Spheres' draws \(n\) spheres; the OpenGL renderer draws them with the given resolution, the raytracer intersects them exactly. graphics.Sphere returns this type for a whole sphere, graphics.Spheres for many at once (particles, point clouds); a sphere with edges, a part of a sphere or a hollow one is a TriangleList. The functions of exudyn.graphics that need triangles (MergeTriangleLists, ExportSTL, …) convert spheres with graphics.SpheresToTriangleList, and graphics.Move with a rotation matrix that scales unequally (an ellipsoid) as well:

Name	type	default value	description
points	array	mandatory	the centers as rows [x,y,z], \(n \times 3\)
radii	list or float	0.1	one radius for all spheres, or a list of \(n\) radii
colors	array	[0,0,0,1]	one RGBA color [R,G,B,A] for all spheres, or one row [R,G,B,A] per sphere, \(n \times 4\); a material index in A as for TriangleList
resolution	int	8	number of segments of a half circle when drawn by OpenGL, rounded down to a power of 2

GraphicsData: TriangleList

GraphicsData 'type' = 'TriangleList' draws a mesh with flat triangles for given points and connectivity; triangles may look smoothened by using appropriate normals; edges may be added optionally:

Name	type	default value	description
points	array	mandatory	the points (vertices) as rows [x,y,z], \(n \times 3\), \(n\) being the number of points
colors	array	[]	the RGBA color of each point as rows [R,G,B,A], \(n \times 4\); if field ‘colors’ does not exist, default colors will be used
normals	array	[]	the normal at each point as rows [nx,ny,nz], \(n \times 3\); if field ‘normals’ does not exist, the normals of the flat triangles are used, and for 6-node triangles at each point the mean of the normals of the geometry of the triangles sharing it
triangles	array	[]	the triangles as rows of 3 point indices (=connectivity), \(n_{trig} \times 3\), counter-clockwise seen from outside; point indices start with 0 and must be \(<\) the number of points; mandatory if there are no triangles6
triangles6	array	[]	rows [c0,c1,c2, m01,m12,m20] of 6 point indices, \(n_{trig6} \times 6\), of 6-node (quadratic, curved) triangles: the corners counter-clockwise seen from outside, then the mid-side nodes between the corners 0-1, 1-2 and 2-0 (graphics.FromPointsAndTrigs with 6 indices per row, graphics.NGsolveMesh2PointsAndTrigs(..., triangles6=True)); they are kept as they are and split into flat triangles when drawn (OpenGL, raytracer; SC.renderer.GetGraphicsData() returns them as they are, or refined once), with the settings of that moment: each edge subdivided until the angle between its end tangents, and between the given normals of its nodes, is below visualizationSettings.openGL.advanced.curvedTriangleTilingAngle, at most curvedTriangleMaxTiling times, the inside following the three edges - a surface curved in one direction is not subdivided along the other
edges	array	[]	the edges drawn on the triangle mesh as rows of 2 point indices, \(n_{lines} \times 2\)
edges3	array	[]	quadratic (curved) edges, rows [p0, p1, m01] of three point indices: the end points, then the mid point - the order of triangles6; for feature edges on a surface of 6-node triangles, such as the rim of a cylinder; drawn as the quadratic lines of Lines, in edgeColor
edgeColor	list	[0,0,0,1]	list of 4 floats to define RGB-color and transparency of edges

GraphicsData: an example of all types

One model with each type of GraphicsData - as a dictionary, and as the functions of exudyn.graphics return it - and a chrome sphere, drawn with the raytracer. More are in the Python examples and in graphics.py, see Section Module: graphics.

import exudyn as exu
from exudyn.utilities import *   #includes itemInterface, the Create functions
import exudyn.graphics as graphics
from exudyn.interactive import ShowImage
import numpy as np

SC = exu.SystemContainer()
mbs = SC.AddSystem()

Line: a polygonal line through the points, here as a dictionary - a red square with side length 1 -, drawn by a ground:

graphicsData = {'type':'Line',
                'color': [1,0,0,1], #red
                'data': [[0,0,0],
                         [1,0,0],
                         [1,1,0],
                         [0,1,0],
                         [0,0,0]]}

vGround = VObjectGround(graphicsData=[graphicsData])
oGround = mbs.AddObject(ObjectGround(referencePosition=[0,0,0],
                                     visualization=vGround))

The same, much shorter, with graphics.Lines:

gSquare = graphics.Lines([[0,0,0],[1,0,0],[1,1,0],[0,1,0],[0,0,0]],
                         color=graphics.color.red)

Lines: separate lines, straight with two points each or quadratic (curved) with three - the end points, then the mid point:

gLShape = {'type':'Lines',
           'points': [[0,-0.3,0], [1,-0.3,0],  [1,-0.3,0], [1,-1.3,0]], #two lines: an L-shape with side length 1
           'colors': [[0,0,1,1]]*4}                          #blue
gArc = {'type':'Lines', 'shape':'quadratic',                 #a quarter circle, approximately
        'points': [[1,0,0], [0,1,0], [0.7071,0.7071,0]],     #end points, then the mid point
        'colors': [[1,0,0,1]]*3}

Circle and Text:

gCircle = {'type':'Circle',
           'color': [0,0,1,1],  #blue
           'radius': 0.5,
           'position':[0.5,0.5,0]}
gText = graphics.Text(point=[0,1.2,0], text='GraphicsData', color=graphics.color.black)

Spheres: many spheres in one item, with a radius and a color each:

gSpheres = graphics.Spheres(points=[[1.5,0,0],[1.5,0.5,0]], radii=[0.1,0.2],
                            colors=[graphics.color.red, graphics.color.green])

TriangleList: points and triangles - here a tetrahedron, its triangles counter-clockwise seen from outside -, and what most functions of exudyn.graphics return, such as a brick with its edges:

gTetrahedron = graphics.FromPointsAndTrigs(points=[[2,0,0],[2.6,0,0],[2,0.6,0],[2,0,0.6]],
                                           triangles=[[0,2,1],[0,1,3],[0,3,2],[1,2,3]],
                                           color=graphics.color.orange)
gBrick = graphics.Brick(centerPoint=[2.3,1,0.15], size=[0.6,0.4,0.3], color=graphics.color.steelblue,
                        addEdges=True)

Raytracing: a material instead of the alpha value of a color - a chrome sphere - is what the raytracer shows with reflections; the OpenGL renderer draws it in its color:

gSphere = graphics.Sphere(point=[0.5,0.5,0.4], radius=0.3,
                          color=graphics.color.dodgerblue[0:3]+[graphics.material.indexChrome],
                          nTiles=32)

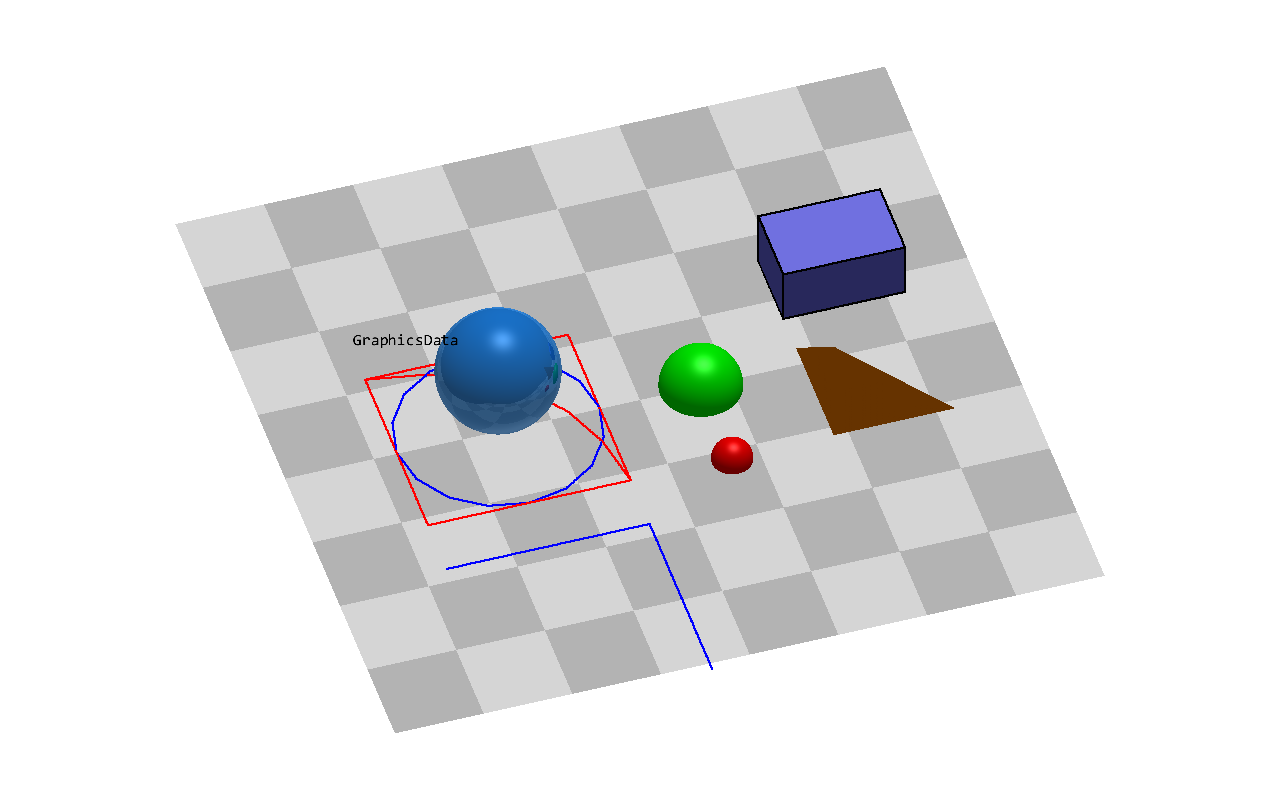

All of them on a second ground, on a checkerboard, and the model drawn with the raytracer:

gFloor = graphics.CheckerBoard(point=[1.2,0.5,-0.01], size=3.5, nTiles=8)
mbs.CreateGround(graphicsDataList=[gFloor, gSquare, gLShape, gArc, gCircle, gText, gSpheres,
                                   gTetrahedron, gBrick, gSphere])
mbs.Assemble()

SC.visualizationSettings.openGL.multiSampling = 1
SC.visualizationSettings.openGL.light1.enable = False
SC.visualizationSettings.raytracer.numberOfThreads = 8 #adjust to your number of threads
SC.visualizationSettings.openGL.lineWidth = 3
SC.visualizationSettings.general.showSolverInformation = False
SC.visualizationSettings.view0.window.showComputationInfo = False
SC.visualizationSettings.view0.scene.drawCoordinateSystem = False
view = RotationMatrixZ(-0.3) @ RotationMatrixX(0.5*np.pi-0.8) #the view from the front and above, z up
image = ShowImage(SC, size=[1280,800], modelRotation=view)

In a script, SC.visualizationSettings.view0.camera.useRaytracer = True before mbs.SolutionViewer() (or SC.renderer.Start()) draws the render window with the raytracer; start with a small window, or with raytracer.imageSizeFactor = 3, which reduces the resolution.

python/Notebooks/snippets/graphics.ipynb

Contact problems

Since Q4 2021 a contact module is available in Exudyn. This separate module GeneralContact [still under development, consider with care!] is highly optimized and implemented with parallelization (multi-threaded) for certain types of contact elements.

Fig. 9 Some tests and examples using GeneralContact

Note:

• GeneralContact is (in most cases) restricted to dynamic simulation (explicit or implicit [still under development, consider with care!] ) if friction is used; without friction, it also works in the static case

• in addition to GeneralContact there are special objects, in particular for rolling and simple 1D contacts, that are available as single objects, cf. ObjectConnectorRollingDiscPenalty

• GeneralContact is recommended to be used for large numbers of contacts, while the single objects are integrated more directly into mbs.

Currently, GeneralContact includes:

• Sphere-Sphere contact (attached to any marker); may represent circle-circle contact in 2D

• Triangles mounted on rigid bodies, in contact with Spheres [only explicit]

• ANCFCable2D contacting with spheres (which then represent circles in 2D) [partially implicit, needs revision]

For details on the contact formulations, see Modeling of contact in Exudyn.

Interaction with Julia

The scientific community gets increasingly interested into the language Julia. There is a very simple interoperability with julia – at least from julia to Python – which has been tests. The other way – calling Python from julia – is also possible, but it is left to the reader.

After installing julia (tested on Windows 10 with julia 1.6.7), you need to add Python accessibility via PyCall in julia:

  using Pkg
  Pkg.add("PyCall")

Ideally, you have a certain Python installation where Exudyn is already installed (and for the following examples, you also need matplotlib). Find the according Python path in any Python console:

  import sys
  print(sys.executable)

Use this path and adapt the following julia script (‘raw’ allows to use single backslash) in julia:

  ENV["PYTHON"]=raw"C:\Users\username\.conda\envs\venvP38\python.exe"
  Pkg.build("PyCall")

Now we can interact with Python, using Python objects in julia almost natively, try:

  py"""
  import exudyn
  from exudyn.demos import *

  Demo1()
  """

This will run the very simple Exudyn Demo1. As exudyn is now imported into this Python session, you can access it, e.g., py"exudyn".Help() will write the help message.

To show the interoperability with julia, test the following example (similar to Demo1) in julia:

  py"""
  import exudyn as exu               #EXUDYN package including C++ core part
  import exudyn.itemInterface as eii #conversion of data to exudyn dictionaries

  SC = exu.SystemContainer()         #container of systems
  mbs = SC.AddSystem()               #add a new system to work with

  nMP = mbs.AddNode(eii.NodePoint2D(referenceCoordinates=[0,0]))
  mbs.AddObject(eii.ObjectMassPoint2D(mass=10, nodeNumber=nMP ))
  mMP = mbs.AddMarker(eii.MarkerNodePosition(nodeNumber = nMP))
  mbs.AddLoad(eii.Force(markerNumber = mMP, loadVector=[0.001,0,0]))

  #add a sensor:
  s = mbs.AddSensor(eii.SensorNode(nodeNumber=nMP,
                    outputVariableType=exu.OutputVariableType.Position,
                    storeInternal=True))

  mbs.Assemble()                     #assemble system and solve
  simulationSettings = exu.SimulationSettings()
  simulationSettings.timeIntegration.verboseMode=1 #provide some output
  simulationSettings.solution.file.name = 'solution/demo1.txt'

  mbs.SolveDynamic(simulationSettings)
  print('results can be found in local directory: solution/demo1.txt')
  """

We can access Python variables from julia via py"..." to read out, e.g., mbs:

  py"mbs".systemData.Info()

We can use variables (or objects) directly in julia, e.g.,

  mbs=py"mbs"
  print(mbs)

Finally, we can also plot values via PlotSensor (matplotlib in the background):

  eplt=pyimport("exudyn.plot")
  eplt.PlotSensor(py"mbs", py"s")

We could also access the stored sensor data in julia, using

  x = py"mbs".GetSensorStoredData(py"s")

and we could just print (or use) the first 10 rows of this data generated on the Python side, using it in julia:

  x[1:10,:]

NOTE the 1-based indexing in julia, which highlights the limitations of this approach.

To finally check if the GLFW renderer also runs via julia, just use:

  py"""
  from exudyn.demos import *
  Demo2()
  """

For the full range of possibilities, see github.com/JuliaPy/PyCall.jl.

The C++ core

The computation happens in C++: mbs.AddObject(...) creates an object on the C++ side from a validated dictionary, mbs.SolveDynamic(...) runs a C++ solver, and Python holds the model and reads the results. Nothing of that needs to be known to use Exudyn - but two questions come up often enough to say where they are answered, both in the developer documentation, which is part of this documentation:

• How is the C++ side organised, and where do I start reading? - C++ architecture: the item abstraction, the split into computational, main and visualization classes, what each directory under src/ is, and what happens when mbs.AddObject(...) is called.

• I want to add my own item in C++. - coding style, section 9: the two worked cases (a body and a connector), and the advice that comes before them - write it in Python first, with user functions, and go to C++ when that works and is too slow.

Those pages say what the C++ side is and how to work on it, and that is as far as prose goes: for a deeper understanding of the core, and for any low-level change, it is inevitable to visit and study the GitHub project itself - the sources, the generators that write parts of them, and the history that says why something is the way it is.

Building Exudyn from source is Installation instructions.

Interaction with other codes

Interaction with other codes and computers (E.g., MATLAB or other C++ codes, or other Python versions) is possible. To connect to any other code, it is convenient to use a TCP/IP connection. This is enabled via the exudyn.utilities functions

• CreateTCPIPconnection

• TCPIPsendReceive

• CloseTCPIPconnection

Basically, data can be transmitted in both directions, e.g., within a preStepUserFunction. In Examples, you can find TCPIPexudynMatlab.py which shows a basic example for such a connectivity.

ROS

Basic interaction with ROS has been tested. However, make sure to use Python 3, as there is no (and will never be any) Python 2 support for Exudyn.

Tools that are not part of a model

Three things that are used beside a model rather than inside one: the command line of the installed package, the results monitor, which watches a running simulation from a second process, and the settings that persist between runs.

• The command line: python -m exudyn
  • info — what to put in a bug report
  • plot — a figure without writing a script
  • demo — does this installation work?
  • dialogs — look a setting up before writing the model
  • monitor — the results monitor
  • Why this is not simply exudyn ...
• The results monitor
  • Three ways to call it
  • Finding the file
  • Choosing what is drawn
  • The control panel
  • Settings that survive
  • In a script, in a test, on a server
  • Every option
• User settings that persist between runs
  • What happens when the file is there
  • Storing from the dialog
  • Placing a dialog, and a window, from a script
  • The plot windows of PlotSensor
  • Remembering a dialog, its columns and its font
