LoadMassProportional

Load attached to MarkerBodyMass marker, applying a 3D vector load (e.g. the vector [0,-g,0] is used to apply gravitational loading of size g in negative y-direction).

Simpler: mbs.CreateMassPoint or mbs.CreateRigidBody add this item, with what it needs, in one call.

Interface

Python names: LoadMassProportional or Gravity, and VGravity for its visualization
Markers it acts on: those providing BodyMass: MarkerBodyMass

Parameters

The parameters of the item; in a dictionary, its type is ‘MassProportional’:

name	type	size	default	description
name	String		‘’	load’s unique name
markerNumber	MarkerIndex		invalid (-1)	marker’s number to which load is applied
loadVector	Vector3D	3	[0.,0.,0.]	(symbol: \(\bv\)) vector-valued load [SI:N/kg = m/s\(^2\)]; typically, this will be the gravity vector in global coordinates; in case of a user function, this v is ignored
loadVectorUserFunction	LoadMassProportionalLoadVectorUserFunction		0	(symbol: \(\mathrm{UF} \in \Rcal^3\)) A Python function which defines the time-dependent load; see description below; see also notes on loadFactor and drawing in LoadForceVector!
visualization	VLoadMassProportional			parameters for visualization of item

Visualization parameters

The parameters of VLoadMassProportional, given as visualization:

name	type	size	default	description
show	Bool		True	set true, if item is shown in visualization and false if it is not shown

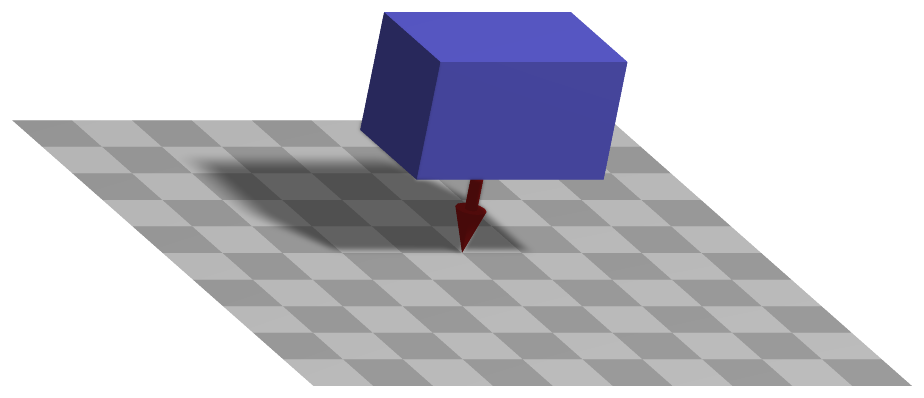

Drawing

Drawn as all loads.

Detailed description

Load and its frame

The load \(\bv\) = loadVector, or the return value of loadVectorUserFunction, is a force per mass - an acceleration, \([0,\,-g,\,0]\) for gravity along \(-y\) - given in the global frame. It acts on every part of the body in proportion to its density \(\rho\), and is not a point force at the center of mass: on a flexible body it is the distributed body load.

Generalized forces

MarkerBodyMass provides the mass-weighted integral of the position Jacobian of the body, and the generalized forces are

\[ \Qm = \left(\int_V \rho\, \LU{0}{\Jm_{pos}} \, dV\right)\tp \LU{0}{\bv} . \]

For a rigid body this is the force \(m\,\LU{0}{\bv}\) at the center of mass. The load factor applies as for a force.

Userfunction: loadVectorUserFunction(mbs, t, loadVector) A user function, which computes the mass proporitional load vector depending on time and object parameters, which is hereafter applied to object or node. Example of user function: functionality same as in LoadForceVector

arguments / return	type or size	description
`mbs`	MainSystem	provides MainSystem mbs to which load belongs
`t`	Real	current time in mbs
`loadVector`	Vector3D	\(\bv\) copied from object; WARNING: this parameter does not work in combination with static computation, as it is changed by the solver over step time
return value	Vector3D	computed load vector

Mini example

node = mbs.AddNode(NodePoint(referenceCoordinates = [1,0,0]))
body = mbs.AddObject(MassPoint(nodeNumber = node, mass=2))
mMass = mbs.AddMarker(MarkerBodyMass(bodyNumber=body))
mbs.AddLoad(LoadMassProportional(markerNumber=mMass, loadVector=[0,0,-9.81]))

#assemble and solve system for default parameters
mbs.Assemble()
mbs.SolveDynamic()

#check result
exu.sys['testResult'] = mbs.GetNodeOutput(node, exu.OutputVariableType.Position)[2]
#final z-coordinate of position shall be -g/2 due to constant acceleration with g=-9.81
#result independent of mass

Examples (Ex) and TestModels (TM) that show this item, with weblink to github: basicTutorial2024.py (Ex), tutorialSpringDamperCreate.py (Ex), tutorialRigidBody.py (Ex), tutorialRigidBodyCreate.py (Ex)
