ObjectRigidBody2D

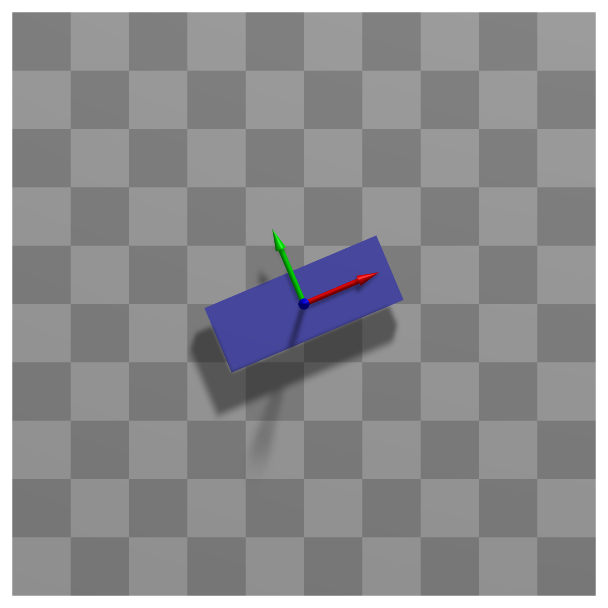

A 2D rigid body which is attached to a rigid body 2D node. The body obtains coordinates, position, velocity, etc. from the underlying 2D node.

../../../_images/ObjectRigidBody2D.png

Simpler: mbs.CreateRigidBody adds this item, with what it needs, in one call.

Interface

Parameters

The parameters of the item; in a dictionary, its type is ‘RigidBody2D’:

name

type

size

default

description

name

String

‘’

objects’s unique name

mass

UReal

0.

(symbol: \(m\)) mass [SI:kg] of rigid body

inertia

UReal

0.

(symbol: \(J\)) inertia [SI:kgm\(^2\)] of rigid body w.r.t. reference point; this is equal to the center of mass, if centerOfMass = 0

centerOfMass

Vector2D

2

[0.,0.]

(symbol: \(\LU{b}{\bv_{COM}}\)) local position of COM relative to the body’s reference point; if the vector of the COM is [0,0], the computation will not consider additional terms for the COM and it is faster

nodeNumber

NodeIndex

invalid (-1)

(symbol: \(n_0\)) node number (type NodeIndex) for 2D rigid body node

visualization

VObjectRigidBody2D

parameters for visualization of item

Renamed parameters, still taken with a DeprecationWarning: physicsMass (deprecated since 1.12.258, removed in 2031): use mass; physicsInertia (deprecated since 1.12.258, removed in 2031): use inertia; physicsCenterOfMass (deprecated since 1.12.258, removed in 2031): use centerOfMass.

Visualization parameters

The parameters of VObjectRigidBody2D, given as visualization:

name

type

size

default

description

show

Bool

True

set true, if item is shown in visualization and false if it is not shown

graphicsDataUserFunction

ObjectRigidBody2DGraphicsDataUserFunction

0

A Python function which returns a bodyGraphicsData object, which is a list of graphics data in a dictionary computed by the user function; the graphics elements need to be defined in the local body coordinates and are transformed by mbs to global coordinates

graphicsData

BodyGraphicsData

Structure contains data for body visualization; data is defined in special list / dictionary structure

Drawing

Drawn as all bodies; its graphicsData in the body frame, and what its graphicsDataUserFunction returns; with a contour plot (contour.rigidBodiesColored) colored by the value at the reference point.

Output variables

Available as OutputVariableType in sensors, Get...Output() and other functions:

output variable

symbol

description

Position

\(\LU{0}{\pv}\cConfig(\pLocB) = \LU{0}{\pRef}\cConfig + \LU{0}{\pRef}\cRef + \LU{0b}{\Rot}\pLocB\)

global position vector of body-fixed point given by local position vector \(\pLocB\)

Displacement

\(\LU{0}{\uv}\cConfig + \LU{0b}{\Rot}\pLocB\)

global displacement vector of body-fixed point given by local position vector \(\pLocB\)

Velocity

\(\LU{0}{\vv}\cConfig(\pLocB) = \LU{0}{\dot\uv}\cConfig + \LU{0b}{\Rot}(\LU{b}{\tomega} \times \pLocB\cConfig)\)

global velocity vector of body-fixed point given by local position vector \(\pLocB\)

VelocityLocal

\(\LU{b}{\vv}\cConfig(\pLocB) = \LU{b0}{\Rot} \LU{0}{\vv}\cConfig(\pLocB)\)

local (body-fixed) velocity vector of body-fixed point given by local position vector \(\pLocB\)

RotationMatrix

\(\mathrm{vec}(\LU{0b}{\Rot})=[A_{00},\,A_{01},\,A_{02},\,A_{10},\,\ldots,\,A_{21},\,A_{22}]\cConfig\tp\)

vector with 9 components of the rotation matrix (row-major format)

Rotation

\(\theta_{0\mathrm{config}}\)

scalar rotation angle of body

AngularVelocity

\(\LU{0}{\tomega}\cConfig\)

global 3D angular velocity vector of body

AngularVelocityLocal

\(\LU{b}{\tomega}\cConfig\)

local (body-fixed) 3D angular velocity vector of body

Acceleration

\(\LU{0}{\av}\cConfig(\pLocB) = \LU{0}{\ddot\uv} + \LU{0}{\talpha} \times (\LU{0b}{\Rot} \pLocB) + \LU{0}{\tomega} \times ( \LU{0}{\tomega} \times(\LU{0b}{\Rot} \pLocB))\)

global acceleration vector of body-fixed point given by local position vector \(\pLocB\)

AccelerationLocal

\(\LU{b}{\av}\cConfig(\pLocB) = \LU{b0}{\Rot} \LU{0}{\av}\cConfig(\pLocB)\)

local (body-fixed) acceleration vector of body-fixed point given by local position vector \(\pLocB\)

AngularAcceleration

\(\LU{0}{\talpha}\cConfig\)

angular acceleration vector of body

AngularAccelerationLocal

\(\LU{b}{\talpha}\cConfig = \LU{b0}{\Rot} \LU{0}{\talpha}\cConfig\)

local angular acceleration vector of body

KineticEnergy

\(T = \frac{1}{2} m\, \LU{0}{\vv}\tp\LU{0}{\vv} + m\, \LU{0}{\vv}\tp (\LU{0}{\tomega} \times \LU{0b}{\Rot}\LU{b}{\bv_{COM}}) + \frac{1}{2} J \omega^2\)

kinetic energy of the body, with the velocity \(\LU{0}{\vv}\) of its reference point and the inertia w.r.t. it; localPosition must be \([0,0,0]\)

PotentialEnergy

\(V = 0\)

the body has no elastic energy; gravity and other loads are not part of it (see exudyn.advancedUtilities.LoadPotentialEnergy) - the value stays the same when a body gets a built-in gravity; localPosition must be \([0,0,0]\)

Detailed description

Definition of quantities

intermediate variables

symbol

description

reference point

\(\pRefG\cConfig = \LU{0}{\pv}(n_0)\cConfig\)

position of the reference point, provided by node \(n_0\); the center of mass only if \(\LU{b}{\bv_{COM}} = \Null\)

displacement

\(\LU{0}{\uv}\cConfig = [q_0,\;q_1,\;0]\cConfig\tp\)

displacement of the reference point

velocity

\(\LU{0}{\vv}\cConfig = [\dot q_0,\;\dot q_1,\;0]\cConfig\tp\)

velocity of the reference point

rotation

\(\theta_{0} = \psi_0(n_0)\cRef + \psi_0(n_0)\cConfig\)

rotation about the \(z\)-axis

rotation matrix

\(\LU{0b}{\Rot}\cConfig = \LU{0b}{\Rot}(n_0)\cConfig\)

as given by the node

local position

\(\pLocB = [\LU{b}{b_0},\,\LU{b}{b_1},\,0]\tp\)

local position as used by markers or sensors

angular velocity

\(\LU{0}{\tomega}\cConfig = [0,\,0,\,\dot\theta_0]\tp\)

rotation velocity about \(z\)

applied forces and torques

\(\LU{0}{\fv}_a = [f_0,\;f_1,\;0]\tp\), \(\LU{0}{\ttau}_a = [0,\;0,\;\tau_2]\tp\)

from loads, connectors and joints

Equations of motion

With centerOfMass \(= \Null\):

\[ \mr{m}{0}{0} {0}{m}{0} {0}{0}{J} \vr{\ddot q_0}{\ddot q_1}{\ddot \psi_0} = \vr{f_0}{f_1}{\tau_2} = \fv . \]

With a center of mass \(\vp{b_x}{b_y} = \LU{0}{\bv_{COM}}\) away from the reference point - \(J\) is the moment of inertia about the reference point -

\[ \mr{m}{0}{G_x} {0}{m}{G_y} {G_x}{G_y}{J} \vr{\ddot q_0}{\ddot q_1}{\ddot \psi_0} = \vr{m \dot \psi_0^2 b_x }{m \dot \psi_0^2 b_y}{0} + \vr{f_0}{f_1}{\tau_2} , \quad \vp{G_x}{G_y} = m \vp{b_y}{-b_x} . \]

A LoadCoordinate on coordinate 2 of the node adds a torque \(\tau_2\).

Marker interfaces

The position Jacobian depends on the local position,

\[ \LU{0}{\Jm_{pos}} = \frac{\partial \LU{0}{\vv}(\pLocB)}{\partial \dot\qv} = \mr{1}{0}{-\sin(\theta_0)\LU{b}{b_0} - \cos(\theta_0)\LU{b}{b_1}} {0}{1}{\cos(\theta_0)\LU{b}{b_0}-\sin(\theta_0)\LU{b}{b_1}} {0}{0}{0} , \]

and the rotation Jacobian takes the \(z\)-component of a torque,

\[ \LU{0}{\Jm_{rot}} = \frac{\partial \LU{0}{\tomega}}{\partial \dot\qv} = \mr{0}{0}{0} {0}{0}{0} {0}{0}{1} . \]

Userfunction: graphicsDataUserFunction(mbs, itemNumber) A user function, which is called by the visualization thread in order to draw user-defined objects. The function can be used to generate any BodyGraphicsData, see Section GraphicsData. Use exudyn.graphics functions, see Section Module: graphics, to create more complicated objects. Note that graphicsDataUserFunction needs to copy lots of data and is therefore inefficient and only designed to enable simpler tests, but not large scale problems.

For an example for graphicsDataUserFunction see ObjectGround, ObjectGround.

arguments / return

type or size

description

mbs

MainSystem

provides reference to mbs, which can be used in user function to access all data of the object

itemNumber

Index

integer number of the object in mbs, allowing easy access

return value

BodyGraphicsData

list of GraphicsData dictionaries, see Section GraphicsData

Mini example

node = mbs.AddNode(NodeRigidBody2D(referenceCoordinates = [1,1,0.25*np.pi],
                                   initialCoordinates=[0.5,0,0],
                                   initialVelocities=[0.5,0,0.75*np.pi]))
mbs.AddObject(RigidBody2D(nodeNumber = node, mass=1, inertia=2))

#assemble and solve system for default parameters
mbs.Assemble()
mbs.SolveDynamic()

#check result
exu.sys['testResult'] = mbs.GetNodeOutput(node, exu.OutputVariableType.Position)[0]
exu.sys['testResult']+= mbs.GetNodeOutput(node, exu.OutputVariableType.Coordinates)[2]
#final x-coordinate of position shall be 2, angle theta shall be np.pi

Examples (Ex) and TestModels (TM) that show this item, with weblink to github: tutorialRigidBody.py (Ex), tutorialRigidBodyCreate.py (Ex), rigidPendulum.py (Ex)
