ObjectConnectorCartesianSpringDamper

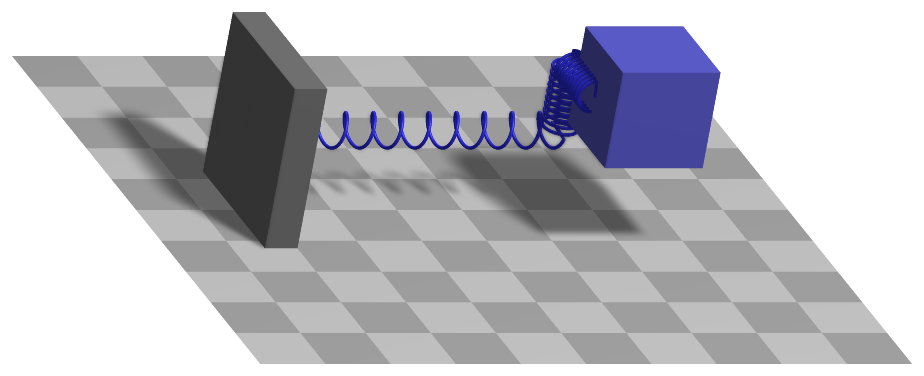

An 3D spring-damper element, providing springs and dampers in three (global) directions (x,y,z); the connector can be attached to position-based markers.

../../../_images/ObjectConnectorCartesianSpringDamper.png

Simpler: mbs.CreateCartesianSpringDamper adds this item, with what it needs, in one call.

Interface

Parameters

The parameters of the item; in a dictionary, its type is ‘ConnectorCartesianSpringDamper’:

name

type

size

default

description

name

String

‘’

connector’s unique name

markerNumbers

ArrayMarkerIndex

[ invalid (-1), invalid (-1) ]

(symbol: \([m0,m1]\tp\)) list of markers used in connector

stiffness

Vector3D

3

[0.,0.,0.]

(symbol: \(\kv\)) stiffness [SI:N/m] of springs; act against relative displacements in 0, 1, and 2-direction

damping

Vector3D

3

[0.,0.,0.]

(symbol: \(\dv\)) damping [SI:N/(m s)] of dampers; act against relative velocities in 0, 1, and 2-direction

offset

Vector3D

3

[0.,0.,0.]

(symbol: \(\vv_{\mathrm{off}}\)) offset between two springs

springForceUserFunction

ObjectConnectorCartesianSpringDamperSpringForceUserFunction

0

(symbol: \(\mathrm{UF} \in \Rcal^3\)) A Python function which computes the 3D force vector between the two marker points, if activeConnector=True; see description below

activeConnector

Bool

True

flag, which determines, if the connector is active; used to deactivate (temporarily) a connector or constraint

visualization

VObjectConnectorCartesianSpringDamper

parameters for visualization of item

Visualization parameters

The parameters of VObjectConnectorCartesianSpringDamper, given as visualization:

name

type

size

default

description

show

Bool

True

set true, if item is shown in visualization and false if it is not shown

drawSize

float

-1.

drawing size = diameter of spring; size == -1.f means that default connector size is used

color

Float4

4

[-1.,-1.,-1.,-1.]

RGBA connector color; if R==-1, use default color

Drawing

Drawn as all connectors; three springs of diameter drawSize, along x, y and z from marker 0 to marker 1, drawn as the spring of ObjectConnectorSpringDamper.

Settings beyond those of all connectors: connectors.curveTiling, connectors.drawSimplified, connectors.springNumberOfWindings, general.cylinderTiling.

Output variables

Available as OutputVariableType in sensors, Get...Output() and other functions:

output variable

symbol

description

Displacement

\(\Delta\! \LU{0}{\pv} = \LU{0}{\pv}_{m1} - \LU{0}{\pv}_{m0}\)

relative displacement in global coordinates

Distance

\(L=\vert \Delta\! \LU{0}{\pv}\vert \)

scalar distance between both marker points

Velocity

\(\Delta\! \LU{0}{\vv} = \LU{0}{\vv}_{m1} - \LU{0}{\vv}_{m0}\)

relative translational velocity in global coordinates

Force

\(\fv_{SD}\)

joint force in global coordinates, see equations

PotentialEnergy

\(V = \frac{1}{2} \sum_i k_i\, (\Delta p_i - v_{\mathrm{off},i})^2\)

elastic energy of the three springs; zero if the connector is not active; raises for a springForceUserFunction

Detailed description

Definition of quantities

intermediate variables

symbol

description

marker m0 position

\(\LU{0}{\pv}_{m0}\)

current global position which is provided by marker m0

marker m1 position

\(\LU{0}{\pv}_{m1}\)

marker m0 velocity

\(\LU{0}{\vv}_{m0}\)

current global velocity which is provided by marker m0

marker m1 velocity

\(\LU{0}{\vv}_{m1}\)

Connector forces

Connector forces are based on relative displacements and relative veolocities in global coordinates. Relative displacement between marker m0 to marker m1 positions is given by

(73)\[ \Delta\! \LU{0}{\pv}= \LU{0}{\pv}_{m1} - \LU{0}{\pv}_{m0} \, , \]

and relative velocity reads

\[ \Delta\! \LU{0}{\vv}= \LU{0}{\vv}_{m1} - \LU{0}{\vv}_{m0} \, . \]

If activeConnector = True, the spring force vector is computed as

\[ \LU{0}{\fv_{SD}} = \diag(\kv)\cdot(\Delta\! \LU{0}{\pv}-\LU{0}{\vv_{\mathrm{off}}}) + \diag(\dv) \cdot \Delta\! \LU{0}{\vv} \, . \]

If the springForceUserFunction \(\mathrm{UF}\) is defined, \(\fv_{SD}\) instead becomes (\(t\) is current time)

\[ \LU{0}{\fv_{SD}} = \mathrm{UF}(mbs, t, i_N, \Delta\! \LU{0}{\pv}, \Delta\! \LU{0}{\vv}, \kv, \dv, \vv_{\mathrm{off}}) \, , \]

and iN represents the itemNumber (=objectNumber). If activeConnector = False, \(\fv_{SD}\) is set to zero.

The force \(\fv_{SD}\) acts via the markers’ position jacobians \(\Jm_{pos,m0}\) and \(\Jm_{pos,m1}\). The generalized forces added to the LHS equations read for marker \(m0\),

\[ \fv_{LHS,m0} = -\LU{0}{\Jm_{pos,m0}\tp} \LU{0}{\fv_{SD}} \, , \]

and for marker \(m1\),

\[ \fv_{LHS,m1} = \LU{0}{\Jm_{pos,m1}\tp} \LU{0}{\fv_{SD}} \, . \]

The LHS equation parts are added accordingly using the LTG mapping. Note that the different signs result from the signs in (73).

The connector also provides an analytic jacobian, which is used if newton.numericalDifferentiation.forODE2 = False and if there is no springForceUserFunction (otherwise numerical differentiation is used).

The anayltic jacobian for the coupled equation parts \(\fv_{LHS,m0}\) and \(\fv_{LHS,m1}\) is based on the local jacobians

\[\begin{split} \begin{aligned} \Jm_{loc0} &= f_{ODE2}\frac{\partial \LU{0}{\fv_{SD}}}{\partial \LU{0}{\pv}_{m0}} + f_{ODE2_t}\frac{\partial \LU{0}{\fv_{SD}}}{\partial \LU{0}{\vv}_{m0}} = -f_{ODE2} \cdot \diag(\kv) - f_{ODE2_t} \cdot \diag(\dv) \, , \\ \Jm_{loc1} &= f_{ODE2}\frac{\partial \LU{0}{\fv_{SD}}}{\partial \LU{0}{\pv}_{m1}} + f_{ODE2_t}\frac{\partial \LU{0}{\fv_{SD}}}{\partial \LU{0}{\vv}_{m1}} = f_{ODE2} \cdot \diag(\kv) + f_{ODE2_t} \cdot \diag(\dv) \, . \end{aligned} \end{split}\]

Here, \(f_{ODE2}\) is the factor for the position derivative and \(f_{ODE2_t}\) is the factor for the velocity derivative, which allows a computation of the computation for both the position as well as the velocity part at the same time.

The complete jacobian for the LHS equations then reads,

\[\begin{split} \begin{aligned} \Jm_{CSD}&=\mp{\displaystyle \frac{\partial \fv_{LHS,m0}}{\partial \qv_{m0}}} {\displaystyle \frac{\partial \fv_{LHS,m0}}{\partial \qv_{m1}}} {\displaystyle \frac{\partial \fv_{LHS,m1}}{\partial \qv_{m0}}} {\displaystyle \frac{\partial \fv_{LHS,m1}}{\partial \qv_{m1}}} + \Jm_{CSD'} \\ &= \mp{-\LU{0}{\Jm_{pos,m0}\tp} \Jm_{loc0} \Jm_{pos,m0}} {-\LU{0}{\Jm_{pos,m0}\tp} \Jm_{loc1} \Jm_{pos,m1}} {\LU{0}{\Jm_{pos,m1}\tp} \Jm_{loc0} \Jm_{pos,m0}} {\LU{0}{\Jm_{pos,m1}\tp} \Jm_{loc1} \Jm_{pos,m1}} + \Jm_{CSD'} \\ &= \mp{\LU{0}{\Jm_{pos,m0}\tp} \Jm_{loc1} \Jm_{pos,m0}} {-\LU{0}{\Jm_{pos,m0}\tp} \Jm_{loc1} \Jm_{pos,m1}} {-\LU{0}{\Jm_{pos,m1}\tp} \Jm_{loc1} \Jm_{pos,m0}} {\LU{0}{\Jm_{pos,m1}\tp} \Jm_{loc1} \Jm_{pos,m1}} + \Jm_{CSD'} \end{aligned} \end{split}\]

Here, \(\qv_{m0}\) are the coordinates associated with marker \(m0\) and \(\qv_{m1}\) of marker \(m1\).

The second term \(\Jm_{CSD'}\) is only non-zero if \(\frac{\partial \LU{0}{\Jm_{pos,i}\tp}}{\partial \qv_{i}}\) is non-zero, using \(i \in \{m0, \, m1\}\). As the latter terms would require to compute a 3-dimensional array, the second jacobian term is computed as

(74)\[ \Jm_{CSD'} = \mp{-f_{ODE2}\frac{\partial \left(\LU{0}{\Jm_{pos,m0}\tp} \fv' \right)}{\partial \qv_{m0}}}{\Null}{\Null} { f_{ODE2}\frac{\partial \left(\LU{0}{\Jm_{pos,m1}\tp} \fv' \right)}{\partial \qv_{m1}}} \]

in which we set \(\fv' = \LU{0}{\fv_{SD}}\), but the derivatives in (74) are evaluated by setting \(\fv' = const\).

Userfunction: springForceUserFunction(mbs, t, itemNumber, displacement, velocity, stiffness, damping, offset) A user function, which computes the 3D spring force vector depending on time, object variables (deltaL, deltaL_t) and object parameters (stiffness, damping, force). The object variables are provided to the function using the current values of the SpringDamper object. Note that itemNumber represents the index of the object in mbs, which can be used to retrieve additional data from the object through mbs.GetObjectParameter(itemNumber, ...), see the according description of GetObjectParameter.

arguments / return

type or size

description

mbs

MainSystem

provides MainSystem mbs in which underlying item is defined

t

Real

current time in mbs

itemNumber

Index

integer number \(i_N\) of the object in mbs, allowing easy access to all object data via mbs.GetObjectParameter(itemNumber, …)

displacement

Vector3D

\(\Delta\! \LU{0}{\pv}\)

velocity

Vector3D

\(\Delta\! \LU{0}{\vv}\)

stiffness

Vector3D

copied from object

damping

Vector3D

copied from object

offset

Vector3D

copied from object

return value

Vector3D

list or numpy array of computed spring force

Example:

#define simple force for spring-damper:
def UFforce(mbs, t, itemNumber, u, v, k, d, offset):
    return [u[0]*k[0],u[1]*k[1],u[2]*k[2]]

#markerNumbers and parameters taken from mini example
mbs.AddObject(CartesianSpringDamper(markerNumbers = [mGround, mMass],
                                    stiffness = [k,k,k],
                                    damping = [0,k*0.05,0], offset = [0,0,0],
                                    springForceUserFunction = UFforce))

Mini example

#example with mass at [1,1,0], 5kg under load 5N in -y direction
k=5000
nMass = mbs.AddNode(NodePoint(referenceCoordinates=[1,1,0]))
oMass = mbs.AddObject(MassPoint(mass = 5, nodeNumber = nMass))

mMass = mbs.AddMarker(MarkerNodePosition(nodeNumber=nMass))
mGround = mbs.AddMarker(MarkerBodyPosition(bodyNumber=oGround, localPosition = [1,1,0]))
mbs.AddObject(CartesianSpringDamper(markerNumbers = [mGround, mMass],
                                    stiffness = [k,k,k],
                                    damping = [0,k*0.05,0], offset = [0,0,0]))
mbs.AddLoad(Force(markerNumber = mMass, loadVector = [0, -5, 0])) #static solution=-5/5000=-0.001m

#assemble and solve system for default parameters
mbs.Assemble()
mbs.SolveDynamic()

#check result at default integration time
exu.sys['testResult'] = mbs.GetNodeOutput(nMass, exu.OutputVariableType.Displacement)[1]

Examples (Ex) and TestModels (TM) that show this item, with weblink to github: cartesianSpringDamper.py (Ex), CartesianSpringDamperTest.py (TM), sphericalJointTest.py (TM)
