ObjectConnectorTorsionalSpringDamper

An torsional spring-damper element acting on relative rotations around Z-axis of local joint0 coordinate system. It connects to orientation-based markers; if other rotation axis than the local joint0 Z axis shall be used, the joint rotationMarker0 / rotationMarker1 may be used. The joint perfectly extends a RevoluteJoint with a spring-damper, which can also be used to represent feedback control in an elegant and efficient way, by chosing appropriate user functions. It also allows to measure continuous / infinite rotations by making use of a NodeGeneric which compensates \(\pm \pi\) jumps in the measured rotation (OutputVariableType.Rotation).

Simpler: mbs.CreateTorsionalSpringDamper adds this item, with what it needs, in one call.

Interface

Python names: ObjectConnectorTorsionalSpringDamper or TorsionalSpringDamper, and VTorsionalSpringDamper for its visualization
Nodes it takes: NodeGenericData
Markers it acts on: those providing Orientation: MarkerBodyRigid, MarkerNodeRigid, MarkerSuperElementRigid, MarkerKinematicTreeRigid

Parameters

The parameters of the item; in a dictionary, its type is ‘ConnectorTorsionalSpringDamper’:

name	type	size	default	description
name	String		‘’	connector’s unique name
markerNumbers	ArrayMarkerIndex		[ invalid (-1), invalid (-1) ]	list of markers used in connector
nodeNumber	NodeIndex		invalid (-1)	(symbol: \(n_d\)) node number of a NodeGenericData with 1 dataCoordinate for continuous rotation reconstruction; if this node is left to invalid index, it will not be used
stiffness	Real		0.	(symbol: \(k\)) torsional stiffness [SI:Nm/rad] against relative rotation
damping	Real		0.	(symbol: \(d\)) torsional damping [SI:Nm/(rad/s)]
rotationMarker0	Matrix3D	9	[[1,0,0], [0,1,0], [0,0,1]]	local rotation matrix for marker 0; transforms joint into marker coordinates
rotationMarker1	Matrix3D	9	[[1,0,0], [0,1,0], [0,0,1]]	local rotation matrix for marker 1; transforms joint into marker coordinates
offset	Real		0.	(symbol: \(\theta_\mathrm{off}\)) rotational offset considered in the spring torque calculation (this can be used as rotation control input!)
velocityOffset	Real		0.	(symbol: \(\omega_\mathrm{off}\)) angular velocity offset considered in the damper torque calculation (this can be used as angular velocity control input!)
torque	Real		0.	(symbol: \(\tau_c\)) additional constant torque [SI:Nm] added to spring-damper; this can be used to prescribe a torque between the two attached bodies (e.g., for actuation and control)
activeConnector	Bool		True	flag, which determines, if the connector is active; used to deactivate (temporarily) a connector or constraint
springTorqueUserFunction	ObjectConnectorTorsionalSpringDamperSpringTorqueUserFunction		0	(symbol: \(\mathrm{UF} \in \Rcal\)) A Python function which computes the scalar torque between the two rigid body markers in local joint0 coordinates, if activeConnector=True; see description below
visualization	VObjectConnectorTorsionalSpringDamper			parameters for visualization of item

Deprecated parameters, which still work and give a DeprecationWarning when set other than their default: rotationMarker0 (deprecated since 1.12.244, removed in 2031): give the rotation to marker 0 as its localHT, e.g. MarkerBodyRigid(bodyNumber=b, localHT=exu.HT(rotation=A, translation=p)); rotationMarker1 (deprecated since 1.12.244, removed in 2031): give the rotation to marker 1 as its localHT, e.g. MarkerBodyRigid(bodyNumber=b, localHT=exu.HT(rotation=A, translation=p)).

Visualization parameters

The parameters of VObjectConnectorTorsionalSpringDamper, given as visualization:

name	type	size	default	description
show	Bool		True	set true, if item is shown in visualization and false if it is not shown
drawSize	float		-1.	drawing size = diameter of spring; size == -1.f means that default connector size is used
color	Float4	4	[-1.,-1.,-1.,-1.]	RGBA connector color; if R==-1, use default color

Drawing

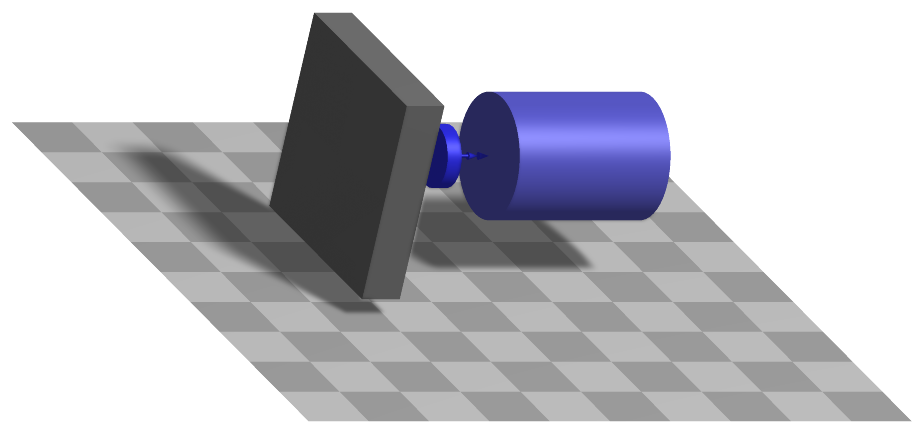

Drawn as all connectors; at each marker a short cylinder and a double arrow along the axis of rotation, of size drawSize.

Settings beyond those of all connectors: general.axesTiling.

Output variables

Available as OutputVariableType in sensors, Get...Output() and other functions:

output variable	symbol	description
Rotation	\(\Delta\theta\)	relative rotation around the spring-damper Z-coordinate, enhanced to a continuous rotation (infinite rotations \(>+\pi\) and \(<-\pi\)) if a NodeGeneric with 1 coordinate as added
AngularVelocityLocal	\(\Delta\omega\)	scalar relative angular velocity around joint0 Z-axis
TorqueLocal	\(\tau_{SD}\)	scalar spring-damper torque around the local joint0 Z-axis
PotentialEnergy	\(V = \frac{1}{2} k\, (\varphi - \varphi_\mathrm{off})^2 + \tau_c\, \varphi\)	elastic energy of the spring and the potential of the constant torque; zero if the connector is not active; raises for a springTorqueUserFunction

Detailed description

Definition of quantities

input parameter	symbol	description
rotationMarker0	\(\LU{m0,J0}{\Rot}\)	rotation matrix which transforms from joint 0 into marker 0 coordinates
rotationMarker1	\(\LU{m1,J1}{\Rot}\)	rotation matrix which transforms from joint 1 into marker 1 coordinates
markerNumbers[0]	\(m0\)	global marker number m0
markerNumbers[1]	\(m1\)	global marker number m1
nodeNumber	\(n0\)	optional node number of a generic node (otherwise exu.InvalidIndex())

intermediate variables	symbol	description
marker m0 orientation	\(\LU{0,m0}{\Rot}\)	current rotation matrix provided by marker m0
marker m1 orientation	\(\LU{0,m1}{\Rot}\)	current rotation matrix provided by marker m1
marker m0 ang. velocity	\(\LU{m0}{\tomega}_{m0}\)	current local angular velocity vector provided by marker m0
marker m1 ang. velocity	\(\LU{m1}{\tomega}_{m1}\)	current local angular velocity vector provided by marker m1
AngularVelocityLocal	\(\Delta\omega = \left( \LU{J0,m1}{\Rot} \LU{m1}{\tomega} - \LU{J0,m0}{\Rot} \LU{m0}{\tomega} \right)_Z\)	angular velocity around joint0 Z-axis

Connector forces

If activeConnector = True, the vector spring force is computed as

\[ \tau_{SD} = k \left(\Delta\theta - \theta_\mathrm{off} \right) + d \left(\Delta\omega - \omega_\mathrm{off} \right) + \tau_c \]

if activeConnector = False, \(\tau_{SD}\) is set zero.

If the springTorqueUserFunction \(\mathrm{UF}\) is defined and activeConnector = True, \(\tau_{SD}\) instead becomes (\(t\) is current time)

\[ \tau_{SD} = \mathrm{UF}(mbs, t, i_N, \Delta\theta, \Delta\omega, \mathrm{stiffness}, \mathrm{damping}, \mathrm{offset}) \]

and iN represents the itemNumber (=objectNumber).

Userfunction: springTorqueUserFunction(mbs, t, itemNumber, rotation, angularVelocity, stiffness, damping, offset) A user function, which computes the scalar torque depending on mbs, time, local quantities (relative rotation, relative angularVelocity), which are evaluated at current time. Furthermore, the user function contains object parameters (stiffness, damping, offset). Note that itemNumber represents the index of the object in mbs, which can be used to retrieve additional data from the object through mbs.GetObjectParameter(itemNumber, ...), see the according description of GetObjectParameter.

Detailed description of the arguments and local quantities:

arguments / return	type or size	description
`mbs`	MainSystem	provides MainSystem mbs in which underlying item is defined
`t`	Real	current time in mbs
`itemNumber`	Index	integer number \(i_N\) of the object in mbs, allowing easy access to all object data via mbs.GetObjectParameter(itemNumber, …)
`rotation`	Real	\(\Delta \theta\)
`angularVelocity`	Real	\(\Delta \omega\)
`stiffness`	Real	copied from object
`damping`	Real	copied from object
`offset`	Real	copied from object
return value	Real	computed torque

Example:

#define simple cubic force for spring-damper:
def UFforce(mbs, t, itemNumber, rotation, angularVelocity, stiffness, damping, offset):
    k = stiffness #passed as list
    u = rotation
    return k*u + 0.1*k*u**3

#markerNumbers and parameters taken from mini example
mbs.AddObject(TorsionalSpringDamper(markerNumbers = [mGround, mBody],
                                    stiffness = k,
                                    damping = k*0.01,
                                    offset = 0,
                                    springTorqueUserFunction = UFforce))

Mini example

#example with rigid body at [0,0,0], with torsional load
k=2e3
nBody = mbs.AddNode(RigidRxyz())
oBody = mbs.AddObject(RigidBody(mass=1, inertia=[1,1,1,0,0,0],
                                nodeNumber=nBody))

mBody = mbs.AddMarker(MarkerNodeRigid(nodeNumber=nBody))
mGround = mbs.AddMarker(MarkerBodyRigid(bodyNumber=oGround,
                                        localPosition = [0,0,0]))
mbs.AddObject(RevoluteJointZ(markerNumbers = [mGround, mBody])) #rotation around ground Z-axis
mbs.AddObject(TorsionalSpringDamper(markerNumbers = [mGround, mBody],
                                    stiffness = k, damping = k*0.01, offset = 0))

#torque around z-axis; expect approx. phiZ = 1/k=0.0005
mbs.AddLoad(Torque(markerNumber = mBody, loadVector=[0,0,1]))

#assemble and solve system for default parameters
mbs.Assemble()
mbs.SolveDynamic(exu.SimulationSettings())

#check result at default integration time
exu.sys['testResult'] = mbs.GetNodeOutput(nBody, exu.OutputVariableType.Rotation)[2]

Relevant Examples (Ex) and TestModels (TM) with weblink to github: chainDriveExample.py (Ex), mobileMecanumWheelRobotWithLidar.py (Ex), ROSMobileManipulator.py (Ex), ROSTurtle.py (Ex), serialRobotInteractiveLimits.py (Ex), serialRobotTSD.py (Ex), explicitSolversPostNewtonTest.py (TM), createFunctionsTest.py (TM), createItemNumbersTest.py (TM), energiesTest.py (TM), inactiveConnectorForceTest.py (TM), rotatingTableTest.py (TM), sliderCrank3Dbenchmark.py (TM)
