ObjectConnectorRigidBodySpringDamper

An 3D spring-damper element acting on relative displacements and relative rotations of two rigid body (position+orientation) markers. It represents a penalty-based rigid joint (or prismatic, revolute, etc.)

Simpler: mbs.CreateRigidBodySpringDamper adds this item, with what it needs, in one call.

Interface

Python names: ObjectConnectorRigidBodySpringDamper or RigidBodySpringDamper, and VRigidBodySpringDamper for its visualization
Nodes it takes: NodeGenericData
Markers it acts on: those providing Position and Orientation: MarkerBodyRigid, MarkerNodeRigid, MarkerSuperElementRigid, MarkerKinematicTreeRigid

Parameters

The parameters of the item; in a dictionary, its type is ‘ConnectorRigidBodySpringDamper’:

name	type	size	default	description
name	String		‘’	connector’s unique name
markerNumbers	ArrayMarkerIndex		[ invalid (-1), invalid (-1) ]	list of markers used in connector
nodeNumber	NodeIndex		invalid (-1)	(symbol: \(n_d\)) node number of a NodeGenericData (size depends on application) for dataCoordinates for user functions (e.g., implementing contact/friction user function)
stiffness	Matrix6D	36	np.zeros((6,6))	stiffness [SI:N/m or Nm/rad] of translational, torsional and coupled springs; act against relative displacements in x, y, and z-direction as well as the relative angles (calculated as Euler angles); in the simplest case, the first 3 diagonal values correspond to the local stiffness in x,y,z direction and the last 3 diagonal values correspond to the rotational stiffness around x,y and z axis
damping	Matrix6D	36	np.zeros((6,6))	damping [SI:N/(m/s) or Nm/(rad/s)] of translational, torsional and coupled dampers; very similar to stiffness, however, the rotational velocity is computed from the angular velocity vector
rotationMarker0	Matrix3D	9	[[1,0,0], [0,1,0], [0,0,1]]	local rotation matrix for marker 0; stiffness, damping, etc. components are measured in local coordinates relative to rotationMarker0
rotationMarker1	Matrix3D	9	[[1,0,0], [0,1,0], [0,0,1]]	local rotation matrix for marker 1; stiffness, damping, etc. components are measured in local coordinates relative to rotationMarker1
offset	Vector6D	6	[0.,0.,0.,0.,0.,0.]	translational and rotational offset considered in the spring force calculation
useIntrinsicFormulation	Bool		False	if True, the joint uses the intrinsic formulation, which is independent on order of markers, using a mid-point and mid-rotation for evaluation and application of connector forces and torques; this uses a Lie group formulation; in this case, the force/torque vector is computed from the stiffness matrix times the 6-vector of the SE3 matrix logarithm between the two marker positions/rotations, see the equations
activeConnector	Bool		True	flag, which determines, if the connector is active; used to deactivate (temporarily) a connector or constraint
springForceTorqueUserFunction	ObjectConnectorRigidBodySpringDamperSpringForceTorqueUserFunction		0	(symbol: \(\mathrm{UF} \in \Rcal^6\)) A Python function which computes the 6D force-torque vector (3D force + 3D torque) between the two rigid body markers, if activeConnector=True; see description below
postNewtonStepUserFunction	ObjectConnectorRigidBodySpringDamperPostNewtonStepUserFunction		0	(symbol: \(\mathrm{UF}_{PN} \in \Rcal\)) A Python function which computes the error of the PostNewtonStep; see description below
visualization	VObjectConnectorRigidBodySpringDamper			parameters for visualization of item

Renamed parameters, still taken with a DeprecationWarning: intrinsicFormulation (deprecated since 1.12.258, removed in 2031): use useIntrinsicFormulation.

Deprecated parameters, which still work and give a DeprecationWarning when set other than their default: rotationMarker0 (deprecated since 1.12.244, removed in 2031): give the rotation to marker 0 as its localHT, e.g. MarkerBodyRigid(bodyNumber=b, localHT=exu.HT(rotation=A, translation=p)); rotationMarker1 (deprecated since 1.12.244, removed in 2031): give the rotation to marker 1 as its localHT, e.g. MarkerBodyRigid(bodyNumber=b, localHT=exu.HT(rotation=A, translation=p)).

Visualization parameters

The parameters of VObjectConnectorRigidBodySpringDamper, given as visualization:

name	type	size	default	description
show	Bool		True	set true, if item is shown in visualization and false if it is not shown
drawSize	float		-1.	drawing size = diameter of spring; size == -1.f means that default connector size is used
color	Float4	4	[-1.,-1.,-1.,-1.]	RGBA connector color; if R==-1, use default color

Drawing

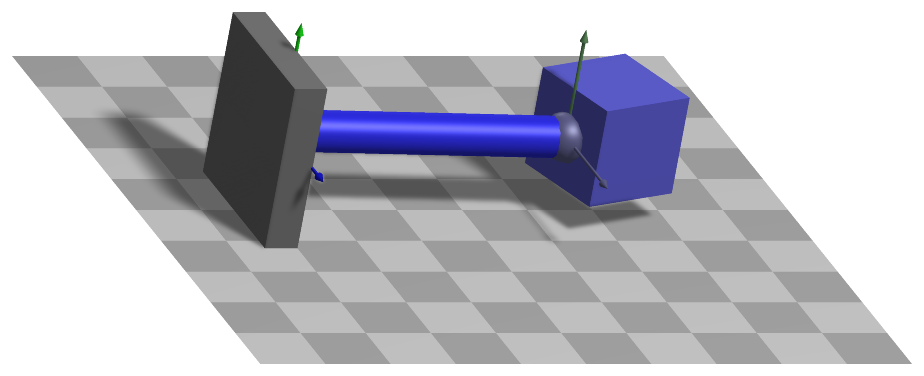

Drawn as all connectors; a sphere of diameter drawSize at each marker and a cylinder between them; with connectors.showJointAxes the frames of both markers.

Settings beyond those of all connectors: connectors.jointAxesLength, connectors.jointAxesRadius, connectors.showJointAxes, general.axesTiling, general.cylinderTiling, general.sphereTiling.

Output variables

Available as OutputVariableType in sensors, Get...Output() and other functions:

output variable	symbol	description
DisplacementLocal	\(\LU{J0}{\Delta\pv}\)	relative displacement in local joint0 coordinates
Displacement	\(\LU{0}{\pv}_{m1} - \LU{0}{\pv}_{m0}\)	global vector from marker m0 to marker m1
HomogeneousTransformationLocal	\(\LU{J0}{\Hm}_{J1} = \LU{0}{\Hm}_{J0}^{-1}\,\LU{0}{\Hm}_{J1}\)	the joint frame \(J1\) relative to the joint frame \(J0\): the relative rotation matrix \(\LU{0}{\Rot}_{J0}\tp\LU{0}{\Rot}_{J1}\) and the relative position \(\LU{0}{\Rot}_{J0}\tp(\LU{0}{\pv}_{m1}-\LU{0}{\pv}_{m0})\); for a joint the identity up to its free axes and its drift; returned and stored as HomogeneousTransformation
VelocityLocal	\(\LU{J0}{\Delta\vv}\)	relative translational velocity in local joint0 coordinates
Rotation	\(\LU{J0}{\ttheta}= [\theta_0,\theta_1,\theta_2]\tp\)	relative rotation parameters (Tait Bryan Rxyz); these are the angles used for calculation of joint torques (e.g. if cX is the diagonal rotational stiffness, the moment for axis X reads mX=cX*phiX, etc.)
AngularVelocityLocal	\(\LU{J0}{\Delta\tomega}\)	relative angular velocity in local joint0 coordinates
ForceLocal	\(\LU{J0}{\fv}\)	joint force in local joint0 coordinates
TorqueLocal	\(\LU{J0}{\mv}\)	joint torque in in local joint0 coordinates
PotentialEnergy	\(V = \frac{1}{2} (\uv - \uv_\mathrm{off})\tp \Km\, (\uv - \uv_\mathrm{off})\)	with the six relative displacements and rotations \(\uv\) in the joint frame, as the force law uses them - conserved exactly only for small rotations; zero if not active; raises for a springForceTorqueUserFunction

Detailed description

Definition of quantities

input parameter	symbol	description
stiffness	\(\kv \in \mathbb{R}^{6\times 6}\)	stiffness in \(J0\) coordinates
damping	\(\dv \in \mathbb{R}^{6\times 6}\)	damping in \(J0\) coordinates
offset	\(\LUR{J0}{\vv}{\mathrm{off}} \in \mathbb{R}^{6}\)	offset in \(J0\) coordinates
rotationMarker0	\(\LU{m0,J0}{\Rot}\)	rotation matrix which transforms from joint 0 into marker 0 coordinates
rotationMarker1	\(\LU{m1,J1}{\Rot}\)	rotation matrix which transforms from joint 1 into marker 1 coordinates
markerNumbers[0]	\(m0\)	global marker number m0
markerNumbers[1]	\(m1\)	global marker number m1

intermediate variables	symbol	description
marker m0 position	\(\LU{0}{\pv}_{m0}\)	current global position which is provided by marker m0
marker m0 orientation	\(\LU{0,m0}{\Rot}\)	current rotation matrix provided by marker m0
marker m1 position	\(\LU{0}{\pv}_{m1}\)	accordingly
marker m1 orientation	\(\LU{0,m1}{\Rot}\)	current rotation matrix provided by marker m1
marker m0 velocity	\(\LU{0}{\vv}_{m0}\)	current global velocity which is provided by marker m0
marker m1 velocity	\(\LU{0}{\vv}_{m1}\)	accordingly
marker m0 velocity	\(\LU{m0}{\tomega}_{m0}\)	current local angular velocity vector provided by marker m0
marker m1 velocity	\(\LU{m1}{\tomega}_{m1}\)	current local angular velocity vector provided by marker m1
Displacement	\(\LU{0}{\Delta\pv}\)	\(\LU{0}{\pv}_{m1} - \LU{0}{\pv}_{m0}\)
Velocity	\(\LU{0}{\Delta\vv}\)	\(\LU{0}{\vv}_{m1} - \LU{0}{\vv}_{m0}\)
DisplacementLocal	\(\LU{J0}{\Delta\pv}\)	\(\left(\LU{0,m0}{\Rot}\LU{m0,J0}{\Rot}\right)\tp \LU{0}{\Delta\pv}\)
VelocityLocal	\(\LU{J0}{\Delta\vv}\)	\(\left(\LU{0,m0}{\Rot}\LU{m0,J0}{\Rot}\right)\tp \LU{0}{\Delta\vv}\)
AngularVelocityLocal	\(\LU{J0}{\Delta\tomega}\)	\(\left(\LU{0,m0}{\Rot}\LU{m0,J0}{\Rot}\right)\tp \left( \LU{0,m1}{\Rot} \LU{m1}{\tomega} - \LU{0,m0}{\Rot} \LU{m0}{\tomega} \right)\)

Connector forces

If activeConnector = True, the vector spring force is computed as

\[ \vp{\LU{J0}{\fv_{SD}}}{\LU{J0}{\mv_{SD}}} = \kv \left( \vp{\LU{J0}{\Delta\pv}}{\LU{J0}{\ttheta}} - \LUR{J0}{\vv}{\mathrm{off}}\right) + \dv \vp{\LU{J0}{\Delta\vv}}{\LU{J0}{\Delta\omega}} \]

For the application of joint forces to markers, \([\LU{J0}{\fv_{SD}},\,\LU{J0}{\mv_{SD}}]\tp\) is transformed into global coordinates. if activeConnector = False, \(\LU{J0}{\fv_{SD}}\) and \(\LU{J0}{\mv_{SD}}\) are set to zero.

If the springForceTorqueUserFunction \(\mathrm{UF}\) is defined and activeConnector = True, \(\fv_{SD}\) instead becomes (\(t\) is current time)

\[ \fv_{SD} = \mathrm{UF}(mbs, t, i_N, \LU{J0}{\Delta\pv}, \LU{J0}{\ttheta}, \LU{J0}{\Delta\vv}, \LU{J0}{\Delta\tomega}, \mathrm{stiffness}, \mathrm{damping}, \mathrm{rotationMarker0}, \mathrm{rotationMarker1}, \mathrm{offset}) \]

and iN represents the itemNumber (=objectNumber).

Userfunction: springForceTorqueUserFunction(mbs, t, itemNumber, displacement, rotation, velocity, angularVelocity, stiffness, damping, rotJ0, rotJ1, offset) A user function, which computes the 6D spring-damper force-torque vector depending on mbs, time, local quantities (displacement, rotation, velocity, angularVelocity, stiffness), which are evaluated at current time, which are relative quantities between both markers and which are defined in joint J0 coordinates. As relative rotations are defined by Tait-Bryan rotation parameters, it is recommended to use this connector for small relative rotations only (except for rotations about one axis). Furthermore, the user function contains object parameters (stiffness, damping, rotationMarker0/1, offset). Note that itemNumber represents the index of the object in mbs, which can be used to retrieve additional data from the object through mbs.GetObjectParameter(itemNumber, ...), see the according description of GetObjectParameter.

Detailed description of the arguments and local quantities:

arguments / return	type or size	description
`mbs`	MainSystem	provides MainSystem mbs in which underlying item is defined
`t`	Real	current time in mbs
`itemNumber`	Index	integer number \(i_N\) of the object in mbs, allowing easy access to all object data via mbs.GetObjectParameter(itemNumber, …)
`displacement`	Vector3D	\(\LU{J0}{\Delta\pv}\)
`rotation`	Vector3D	\(\LU{J0}{\ttheta}\)
`velocity`	Vector3D	\(\LU{J0}{\Delta\vv}\)
`angularVelocity`	Vector3D	\(\LU{J0}{\Delta\tomega}\)
`stiffness`	Matrix6D	copied from object
`damping`	Matrix6D	copied from object
`rotJ0`	Matrix3D	rotationMarker0 copied from object
`rotJ1`	Matrix3D	rotationMarker1 copied from object
`offset`	Vector6D	copied from object
return value	Vector6D	list or numpy array of computed spring force-torque

Example:

#define simple force for spring-damper:
def UFforce(mbs, t, itemNumber, displacement, rotation, velocity, angularVelocity,
            stiffness, damping, rotJ0, rotJ1, offset):
    k = stiffness #passed as list
    u = displacement
    return [u[0]*k[0][0],u[1]*k[1][1],u[2]*k[2][2], 0,0,0]

#markerNumbers and parameters taken from mini example
mbs.AddObject(RigidBodySpringDamper(markerNumbers = [mGround, mBody],
                                    stiffness = np.diag([k,k,k, 0,0,0]),
                                    damping = np.diag([0,k*0.01,0, 0,0,0]),
                                    offset = [0,0,0, 0,0,0],
                                    springForceTorqueUserFunction = UFforce))

Userfunction: postNewtonStepUserFunction(mbs, t, itemNumber, dataCoordinates, displacement, rotation, velocity, angularVelocity, stiffness, damping, rotJ0, rotJ1, offset) A user function which computes the error of the PostNewtonStep \(\varepsilon_{PN}\), a recommended for stepsize reduction \(t_{recom}\) (use values > 0 to recommend step size or values < 0 else; 0 gives minimum step size) and the updated dataCoordinates \(\dv^k\) of NodeGenericData \(n_d\). Except from dataCoordinates, the arguments are the same as in springForceTorqueUserFunction. The postNewtonStepUserFunction should be used together with the dataCoordinates in order to implement a active set or switching strategy for discontinuous events, such as in contact, friction, plasticity, fracture or similar.

Detailed description of the arguments and local quantities:

arguments / return	type or size	description
`mbs`	MainSystem	provides MainSystem mbs in which underlying item is defined
`t`	Real	current time in mbs
`itemNumber`	Index	integer number \(i_N\) of the object in mbs, allowing easy access to all object data via mbs.GetObjectParameter(itemNumber, …)
`dataCoordinates`	Vector	\(\dv^{k-1} = [d_0^{k-1},\; d_1^{k-1},\; \ldots]\) for previous post Newton step \(k-1\)
`displacement`	Vector3D	\(\LU{J0}{\Delta\pv}\)
`rotation`	Vector3D	\(\LU{J0}{\ttheta}\)
`velocity`	Vector3D	\(\LU{J0}{\Delta\vv}\)
`angularVelocity`	Vector3D	\(\LU{J0}{\Delta\tomega}\)
`stiffness`	Matrix6D	copied from object
`damping`	Matrix6D	copied from object
`rotJ0`	Matrix3D	rotationMarker0 copied from object
`rotJ1`	Matrix3D	rotationMarker1 copied from object
`offset`	Vector6D	copied from object
return value	Vector	\(\left[\varepsilon_{PN},\; t_{recom},\; d_0^{k},\; d_1^{k}, ...\right]\) where \(k\) indicates the current step

Mini example

#example with rigid body at [0,0,0], 1kg under initial velocity
k=500
nBody = mbs.AddNode(RigidRxyz(initialVelocities=[0,1e3,0, 0,0,0]))
oBody = mbs.AddObject(RigidBody(mass=1, inertia=[1,1,1,0,0,0],
                                nodeNumber=nBody))

mBody = mbs.AddMarker(MarkerNodeRigid(nodeNumber=nBody))
mGround = mbs.AddMarker(MarkerBodyRigid(bodyNumber=oGround,
                                        localPosition = [0,0,0]))
mbs.AddObject(RigidBodySpringDamper(markerNumbers = [mGround, mBody],
                                    stiffness = np.diag([k,k,k, 0,0,0]),
                                    damping = np.diag([0,k*0.01,0, 0,0,0]),
                                    offset = [0,0,0, 0,0,0]))

#assemble and solve system for default parameters
mbs.Assemble()
mbs.SolveDynamic(exu.SimulationSettings())

#check result at default integration time
exu.sys['testResult'] = mbs.GetNodeOutput(nBody, exu.OutputVariableType.Displacement)[1]

Examples (Ex) and TestModels (TM) that show this item, with weblink to github: connectorRigidBodySpringDamperTest.py (TM), rigidBodySpringDamperIntrinsic.py (TM)
