ObjectJointSpherical

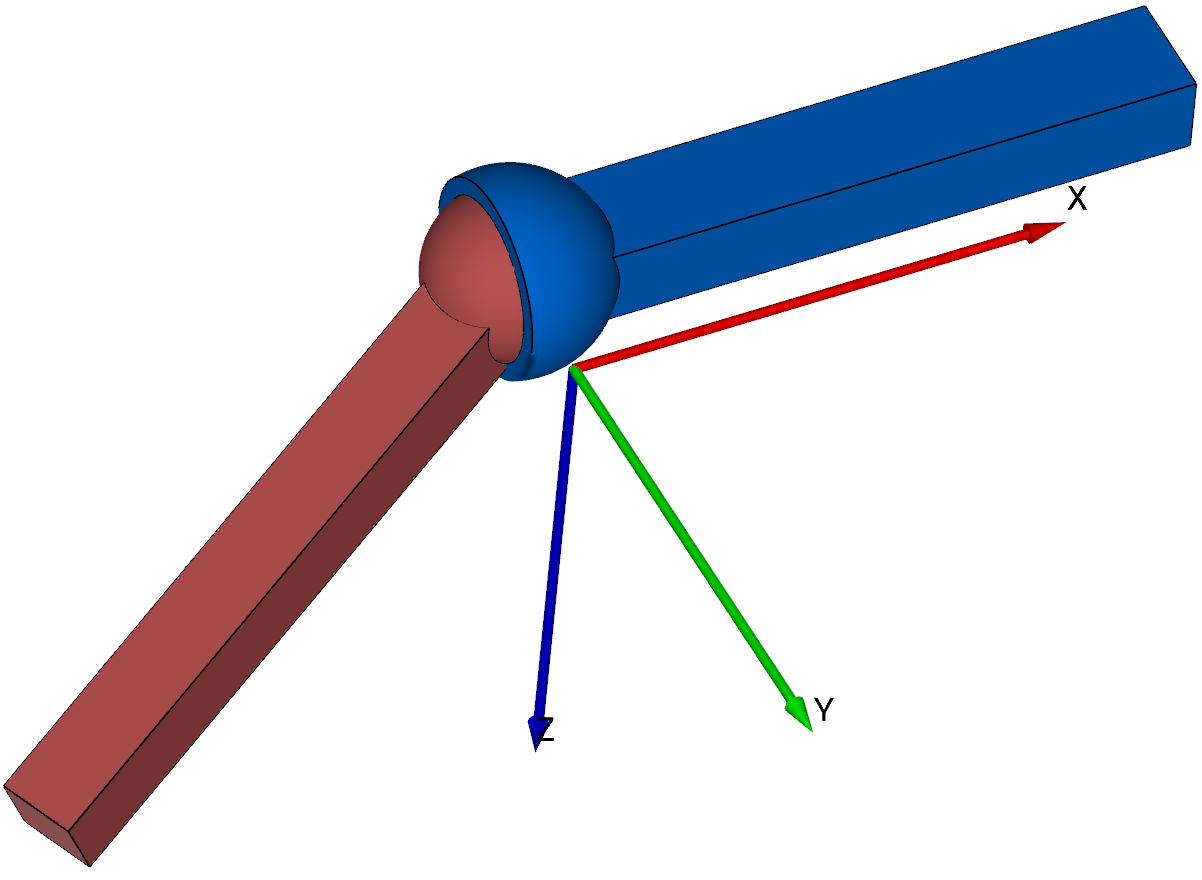

A spherical joint, which constrains the relative translation between two position based markers.

Simpler: mbs.CreateSphericalJoint adds this item, with what it needs, in one call.

Interface

Python names: ObjectJointSpherical or SphericalJoint, and VSphericalJoint for its visualization
Markers it acts on: those providing Position: MarkerBodyPosition, MarkerBodyRigid, MarkerNodePosition, MarkerNodeRigid, MarkerSuperElementPosition, MarkerSuperElementRigid, MarkerKinematicTreeRigid

Parameters

The parameters of the item; in a dictionary, its type is ‘JointSpherical’:

name	type	size	default	description
name	String		‘’	constraints’s unique name
markerNumbers	ArrayMarkerIndex	2	[ invalid (-1), invalid (-1) ]	(symbol: \([m0,m1]\tp\)) list of markers used in connector; \(m1\) is the moving coin rigid body and \(m0\) is the marker for the ground body, which use the localPosition=[0,0,0] for this marker!
constrainedAxes	ArrayIndex	3	[1,1,1]	(symbol: \(\jv=[j_0,\,\ldots,\,j_2]\)) flag, which determines which translation (0,1,2) and rotation (3,4,5) axes are constrained; for \(j_i\), two values are possible: 0=free axis, 1=constrained axis
activeConnector	Bool		True	flag, which determines, if the connector is active; used to deactivate (temporarily) a connector or constraint
visualization	VObjectJointSpherical			parameters for visualization of item

Visualization parameters

The parameters of VObjectJointSpherical, given as visualization:

name	type	size	default	description
show	Bool		True	set true, if item is shown in visualization and false if it is not shown
jointRadius	float		0.1	radius of joint to draw
color	Float4	4	[-1.,-1.,-1.,-1.]	RGBA connector color; if R==-1, use default color

Drawing

Drawn as all joints; a sphere of radius jointRadius at each marker, and a cylinder between them.

Settings beyond those of all joints: general.cylinderTiling, general.sphereTiling.

Output variables

Available as OutputVariableType in sensors, Get...Output() and other functions:

output variable	symbol	description
Position	\(\LU{0}{\pv}_{m0}\)	current global position of position marker \(m0\)
Velocity	\(\LU{0}{\vv}_{m0}\)	current global velocity of position marker \(m0\)
Displacement	\(\LU{0}{\Delta\pv}=\LU{0}{\pv}_{m1} - \LU{0}{\pv}_{m0}\)	constraint drift or relative motion, if not all axes fixed
Force	\(\LU{0}{\fv}\)	joint force in global coordinates

Detailed description

Definition of quantities

intermediate variables	symbol	description
marker m0 position	\(\LU{0}{\pv}_{m0}\)	current global position which is provided by marker \(m0\)
marker m1 position	\(\LU{0}{\pv}_{m1}\)	current global position which is provided by marker \(m1\)
marker m0 velocity	\(\LU{0}{\vv}_{m0}\)	current global velocity which is provided by marker \(m0\)
marker m1 velocity	\(\LU{0}{\vv}_{m1}\)	current global velocity which is provided by marker \(m1\)
relative velocity	\(\LU{0}{\Delta\vv} = \LU{0}{\vv}_{m1} - \LU{0}{\vv}_{m0}\)	constraint velocity error, or relative velocity if not all axes fixed
algebraic variables	\(\zv=[\lambda_0,\,\ldots,\,\lambda_2]\tp\)	vector of algebraic variables (Lagrange multipliers) according to the algebraic equations

Connector constraint equations

activeConnector = True:

If \([j_0,\,\ldots,\,j_2] = [1,1,1]\tp\), meaning that all translational coordinates are fixed, the translational index 3 constraints read

\[ \LU{0}{\pv}_{m1} - \LU{0}{\pv}_{m0} = \Null \]

and the translational index 2 constraints read

\[ \LU{0}{\vv}_{m1} - \LU{0}{\vv}_{m0} = \Null \]

If \([j_0,\,\ldots,\,j_2] \neq [1,1,1]\tp\), meaning that at least one translational coordinate is free, the translational index 3 constraints read for every component \(k \in [0,1,2]\) of the vector \(\LU{0}{\Delta\pv}\)

\[\begin{split} \begin{aligned} \LU{0}{\Delta p_k} &= 0 \quad \mathrm{if} \quad j_k = 1 \quad \mathrm{and}\\ \lambda_k &= 0 \quad \mathrm{if} \quad j_k = 0 \\ \end{aligned} \end{split}\]

and the translational index 2 constraints read for every component \(k \in [0,1,2]\) of the vector \(\LU{0}{\Delta\vv}\)

\[\begin{split} \begin{aligned} \LU{0}{\Delta v_k} &= 0 \quad \mathrm{if} \quad j_k = 1 \quad \mathrm{and}\\ \lambda_k &= 0 \quad \mathrm{if} \quad j_k = 0 \\ \end{aligned} \end{split}\]

activeConnector = False:

\[ \zv = \Null \]

Example for body position marker

In this example, we study the constraint equations for two body position marker, see MarkerBodyPosition, based on rigid bodies, see ObjectRigidBody. The markers \(m_0\) and \(m_1\) have the positions

\[ \LU{0}{\pv_0}(\pLocB_0) = \LU{0}{\rv_{\mathrm{ref},0}} + \LU{0}{\uv_{0}} + \LU{0b}{\Rot_0}\pLocB_0, \quad \LU{0}{\pv_1}(\pLocB_1) = \LU{0}{\rv_{\mathrm{ref},1}} + \LU{0}{\uv_{1}} + \LU{0b}{\Rot_1}\pLocB_1 \, . \]

From there, we can derive the 3 constraint equation

\[ \LU{0}{\rv_{\mathrm{ref},1}} + \LU{0}{\uv_{1}} + \LU{0b}{\Rot_1}\pLocB_1 - \left(\LU{0}{\rv_{\mathrm{ref},0}} + \LU{0}{\uv_{0}} + \LU{0b}{\Rot_0}\pLocB_0 \right) = \Null \, . \]

The constraint jacobians simply follow from the position jacobians of the respective markers \(\LU{0}{\Jm_\mathrm{pos,0}}\) and \(\LU{0}{\Jm_\mathrm{pos,1}}\). The position jacobians are added to the system jacobian at rows according to the global indices of the constraint equations and the columns are determined by the coordinate indices of the bodies’ coordinates.

Mini example

#a point of a rigid body held at a ground point, free to rotate: a spherical pendulum
inertia = InertiaCuboid(density=1000, sideLengths=[1,0.1,0.1])
node = mbs.AddNode(NodeRigidBodyEP(referenceCoordinates=[0.5,0,0]+eulerParameters0))
body = mbs.AddObject(ObjectRigidBody(nodeNumber=node, mass=inertia.Mass(), inertia=inertia.GetInertia6D()))
mbs.AddLoad(LoadMassProportional(markerNumber=mbs.AddMarker(MarkerBodyMass(bodyNumber=body)), loadVector=[0,0,-9.81]))
mGround = mbs.AddMarker(MarkerBodyPosition(bodyNumber=oGround, localPosition=[0,0,0]))
mBody = mbs.AddMarker(MarkerBodyPosition(bodyNumber=body, localPosition=[-0.5,0,0]))
oJoint = mbs.AddObject(ObjectJointSpherical(markerNumbers=[mGround, mBody]))

mbs.Assemble()
simulationSettings = exu.SimulationSettings()
simulationSettings.timeIntegration.numberOfSteps = 1000
mbs.SolveDynamic(simulationSettings)

#the joint point stays at the origin; the height of the center after 1 second (numerical)
exu.sys['testResult'] = mbs.GetNodeOutput(node, exu.OutputVariableType.Position)[2]

Examples (Ex) and TestModels (TM) that show this item, with weblink to github: sphericalJointTest.py (TM), genericJointUserFunctionTest.py (TM), kinematicTreeConstraintTest.py (TM)
